My Space

Assignment 2

TASK: We are required to create a set of scaled drawings of space in our own home (personal space – bedroom/study room) with the current furniture layout using the basic drawing conventions used in the construction industry for this assignment.
Drawings to be produced inclusive:
1. 1 floor plan (complete with furniture)
2. 2 internal elevations (longitudinal and horizontal)
3. 1 section
4. 1 set of detailed drawings of a loose furniture: plan, elevations, sections and one zoom in details.

week 1

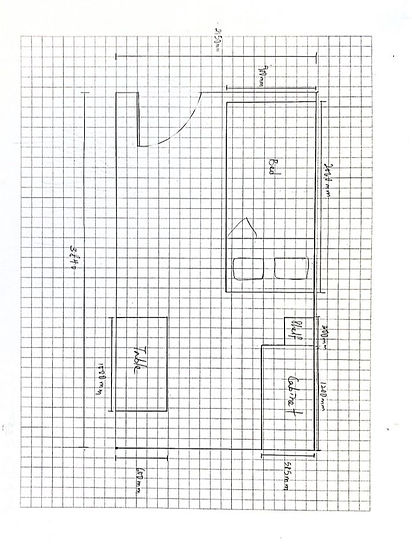

First draft for floor plan using grid paper and proper scale ( 1:25)

WhatsApp Image 2021-09-29 at 10.42.10 (1).jpeg

week 2

Moving on to the elevation drawings, also using a carbon pencil with the proper dimensions.

WhatsApp Image 2021-10-13 at 10.21.17 (1).jpeg

week 3

Conduct the furniture drawing, front view, top view, elevation view and section view, with all dimension in it, meanwhile still in progress, haven't ink it.

week 4

Ink all of them and double check with all the dimension before the submission. Then, got the final outcome.

refelction

Anchor 1

intrapersonal skills

Effectiveness and time management is important in this assignment, as it is my first time conducting this kind of technical drawings, I need to make sure I focus during the lecture and ask during the tutorial session to clarify the problem and challenging part.

THINKING AND PROBLEM-SOLVING SKILLS

Getting a clear understanding is very vital in this assignment to conduct all technical drawings, having to think creatively and tutorial session with Mr Akmal, the question I have are being solved and got a smooth process.

COMMUNICATION SKILLS

In this assignment, having the right and good communication skills help me a lot in solving problems and conveying the query part is also important to learn new things, while getting a higher score.
